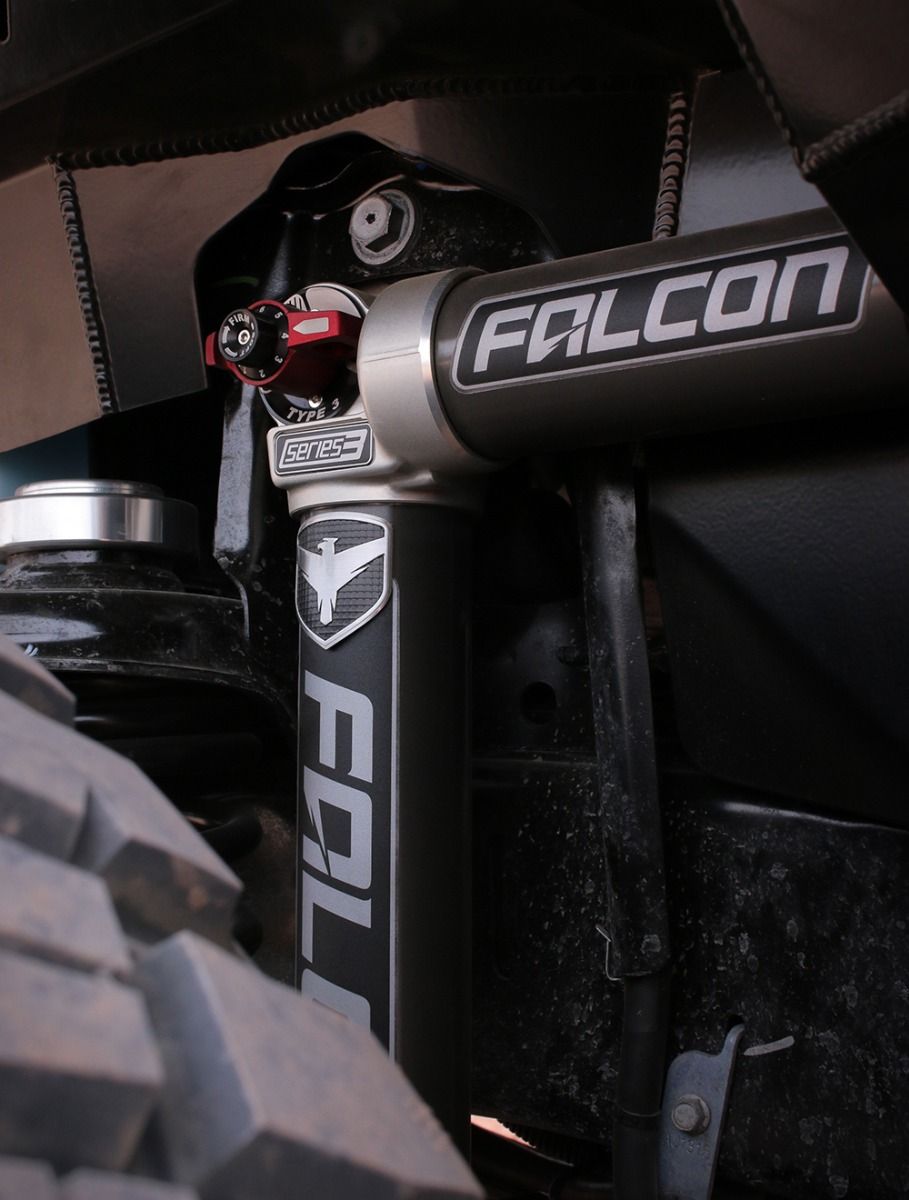

Overview: Falcon SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability with their easy-to-use 3-position Fast Adjust Knob. Settings include Soft, Custom, and Firm. Features an 8-Position Dial for more precise tuning.
For 2-4.5" Lift.
Vehicle(s):
• JL Wrangler Unlimited (4-door) • Does NOT fit EcoDiesel / 4xe / Rubicon 392 models Specs: • 2–4.5” Lift
Falcon SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability with their easy-to-use 3-position Fast Adjust Knob. Settings include Soft Custom and Firm. The Custom setting incorporates an 8-Position Dial for more precise tuning. High-Value Performance" is the driving force behind our vehicle-specific dampers for Jeeps trucks and SUVs. These Jeep-specific shock absorbers deliver increased stability improved ride quality and comfort for daily-driven vehicles as well as race-inspired performance handling and stability for off-road rigs. Falcon Performance Shocks by TeraFlex. SP2 3.3 Fast Adjust Piggyback Shocks: • SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics • Fast Adjust Knob w/ 3 compression settings for large damping adjustments • Settings include: Soft Medium Firm • Custom setting includes an 8-Position Dial for finer damping adjustments • SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings • Ideal for daily-driven Jeeps as well as the serious enthusiast wanting to adjust damping for all driving conditions JL Falcon Shocks: • JL corner-specific shock absorber w/ race-inspired performance • Front lower offset eyelet design provides maximum shock body to frame clearance during articulation • Rear roost guards prevent shock shaft damage from rocks kicked up by the tires • SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings Falcon Series 3 Piggyback Shocks: • Piggyback design increases oil and gas capacity for reduced heat • Flows 6x more oil than restrictive reservoir hose designs • Eliminates common leakage issues found in banjo and swivel fittings • Front shocks– unique horizontal piggyback reservoir increases tire clearance • Cartridge Upgrade Kits are available separately – contact customer service for details
Features & Benefits:
• Choose between Soft and Performance modes during install
• Tunes both compression and rebound
• Soft mode allows a partial bypass of the main piston for a softer ride
• During aggressive driving, Soft mode retains performance tuning for optimal handling
• Soft mode recommended for rough terrain/surfaces and cold weather
• Performance mode recommended for max on- and off-road handling, stability, and control
Falcon Performance Shocks (All):
• Vehicle-specific shock absorbers
• Race-inspired performance for increased vehicle stability
• Improved dynamic roll control and low-speed damping
• Dramatic improvement in on-road comfort and off-road performance
• Optimized fitment for unobstructed suspension travel and articulation
• 2.3" shock body provides optimal performance
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Smooth honed internal shock body surface for long-term performance
• 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• Large shaft diameter provides a wide range of adjustment on adjustable shocks
• Hard anodized 6061-T6 aluminum alloy billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring
• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume
• VOD reduces shock bottoming at full compression or over uneven terrain
• OGS (Oil/Gas Separator) prevents cavitation
• High-viscosity, full synthetic Red Line shock oil for consistent performance across all temperatures
• Synthetic formula also contains special anti-wear and lubricity agents
• 1,000-hour salt spray corrosion resistance test on all hardware
• Serviceable and rebuildable (factory serviced)
• Designed, engineered, and assembled in-house from domestic and globally sourced components
• Patented design
• 1-year warranty
! NOTE:
• Does NOT fit EcoDiesel / 4xe / Rubicon 392 models.
• Upgradeable to 3.5 aDAPT or 3.5 e-Adjust via Cartridge Upgrade Kits for quick compression adjustments. Sold separately — contact customer service for details.
• Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders — See instructions for proper configuration for your application.
• May require 2” Bump Stop Strike Pad Extension Kit (# 1959500) and/or 0.5” Bump Stop Strike Pad Shim Kit(s) (# 1959300).
