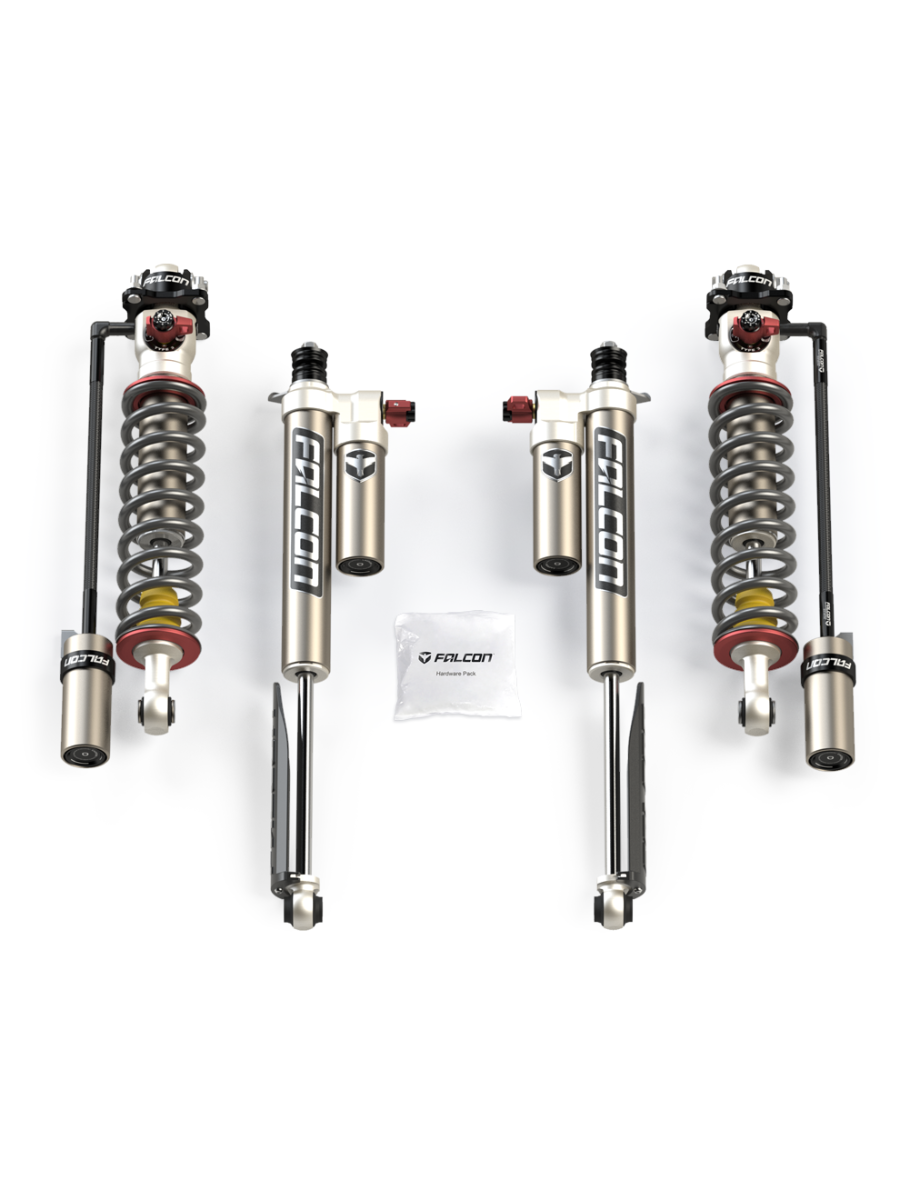

Overview: The Toyota Tundra Falcon 3.3 Series Adjustable Coilover/Remote Reservoir Leveling System is a Max Performance, easy-to-install assembly with preinstalled Coilover springs, specifically tuned for the Tundra.
The Toyota Tundra Falcon 3.3 Series Adjustable Coilover/Remote Reservoir Leveling System features a Max Performance Coilover assembly with a preinstalled Coil Spring, Top Hat, bump stops and adjustable damping. The front shocks include remote reservoirs with mounting hardware for easy, no-drill installation.
The included Top Hat Mount is specifically designed for the Tundra, providing a secure upper shock mount solution and room for additional shock length for maximum travel, even at the 2-inch lifted position on the height-adjustable Front Coilover.
What truly sets the Falcon Tundra Coilover apart is its unique base valve placement before the reservoir, preventing high pressure in the hoses—enhancing durability while reducing maintenance and the risk of leaks. Unlike traditional designs, Falcon hoses feature a push-in press-fit connection secured with a snap ring, eliminating the need for threads and sealant. High-flow, corrosion-resistant stainless-steel hoses further enhance performance.
Each application is precisely tuned with a specific spring rate. The rear features adjustable 3.3 piggyback shocks for an enhanced ride and performance.
Features & Benefits:
• 6061 Billet Top Hat – Provides a strong, precise mounting solution for the front Coilover
• Hard-Anodized Aluminum Shock Bodies – Increases durability and corrosion resistance
• Hard Chrome-Plated Shafts – Engineered for longevity, with 1,000-hour salt spray resistance
• 2” Lift Capability – Height-adjustable for leveling and improved stance
• Full Coilover Assembly – Preinstalled coil spring for easy installation
• Adjustable Damping – Allows fine-tuning for on- and off-road performance
• Remote Reservoir Front Shocks – Increased cooling and performance, with no-drill mounting hardware included
• Low-Pressure Hose System – Unique base valve placement prevents high-pressure in hoses, improving durability and reducing maintenance
• Threadless Hose Design – Press-fit, snap-ring retained hoses eliminate the need for threads and sealant
• High-Flow Stainless Steel Hoses – Corrosion-resistant and built for longevity
• Application-Specific Spring Rates – Optimized for each vehicle for ideal ride quality
• Rear Piggyback Shocks – Adjustable for performance, featuring a microcellular foam bump stop and billet mounting cup
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• 2.3" shock body provides optimal performance
• Smooth honed internal shock body surface for long-term performance
• 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• Large shaft diameter provides wide range of adjustment on adjustable shocks
• Hard anodized 6061-T6 aluminum alloy billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring
• Red Line synthetic oil w/ a high Viscosity Index for consistent performance across all temperatures
• Synthetic formula also contains special anti-wear and lubricity agents
• 1,000-hour salt spray corrosion resistance test on all hardware
• Serviceable and rebuildable (factory serviced)
• Designed, engineered, and assembled in-house from domestic and globally sourced components
• 1-year warranty
! NOTE:
• Requires alignment
• Caster correcting upper control arms are recommended.
- Suggested use:
- #67-52640 ReadyLift UCA 2022-2024 Toyota Tundra Leveling and big lift upper control arms
