Looking for a hassle-free way to build your camper van's electrical system? Introducing the EcoFlow Power Kit (5 kWh) - the world's first integrated, plug-and-play off-grid power solution designed especially for camper vans, motor homes, trailers and RVs of any kind.
Power Kit Variants
You can choose between three variants of the EcoFlow Power Kit (5 kWh):

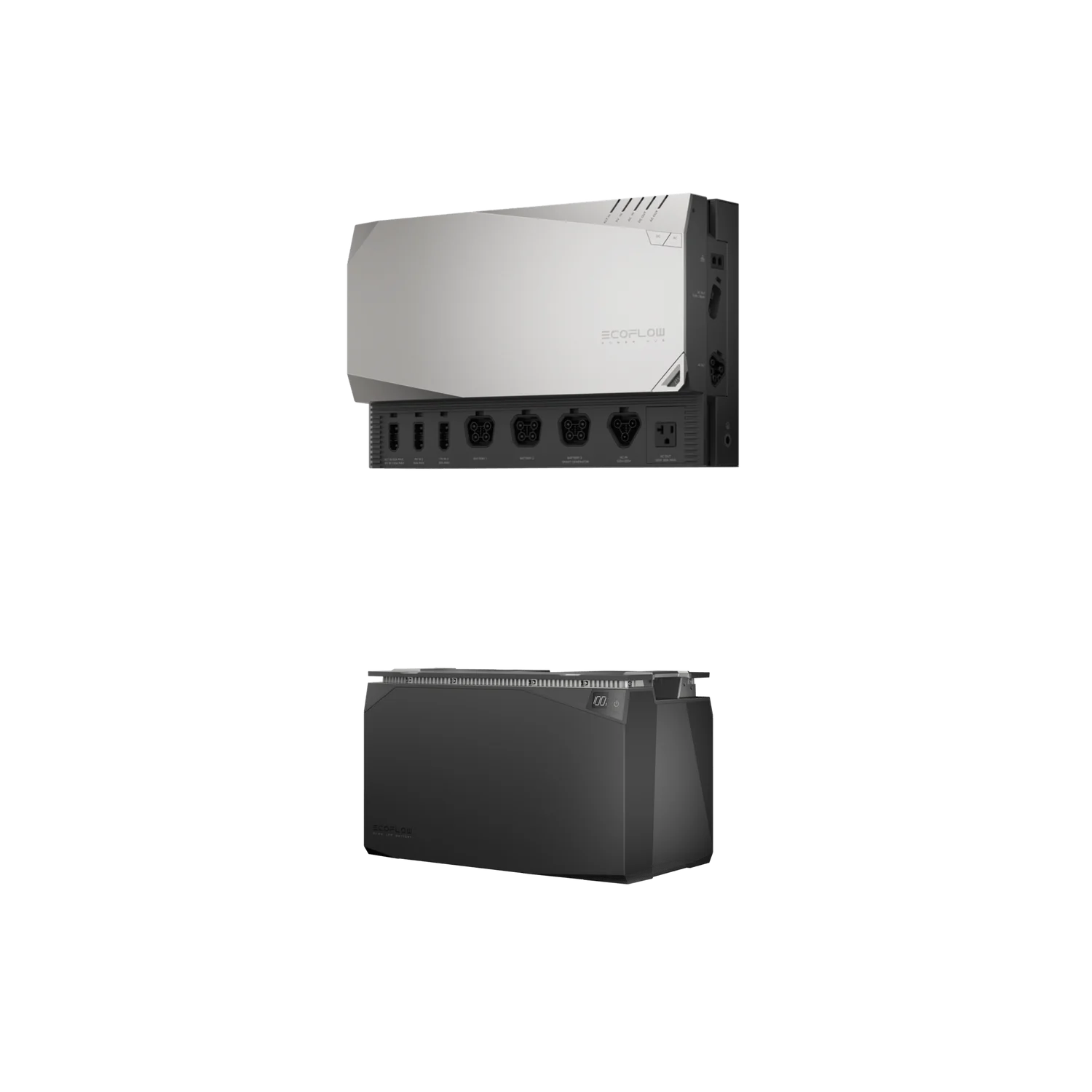

- Get Set Kit includes - Power Hub, LFP Battery, Cable Pack
- Prepared Kit includes - Power Hub, LFP Battery, Cable Pack, AC / DC Smart Distribution Panel, Battery Mounting Strap
- Independence Kit includes - Power Hub, LFP Battery, Cable Pack, AC / DC Smart Distribution Panel, Power Kit Console, Battery Mounting Strap

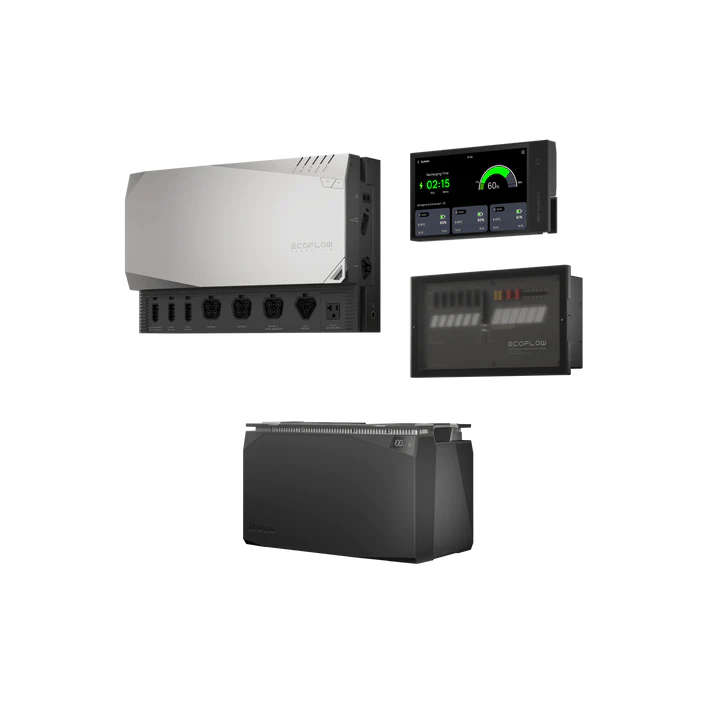

EcoFlow has designed a compact, scalable power system that consists of 4 components:
EcoFlow Power Hub - including a 3600W pure sine inverter-charger with max AC output of a whopping 7200W, dual MPPT solar charge controllers, a DC/DC converter, DC/DC battery charger, and plug-in input/output ports for solar, alternator, battery and generator charging.
EcoFlow Power Kit Console - a 7" full-color LCD touchscreen for control and monitoring of all electrical system inputs and outputs. You can turn DC and AC inputs on and off, monitor remaining battery capacity
EcoFlow AC/DC Distribution Panel - The 3-component panel is designed for 6 AC circuits and 12 DC circuits. It has a transparent exterior faceplate, removable interior face panel, and a deep connection box with knockouts and WAGO-style circuit connectors.
EcoFlow Battery - The 48-volt lithium EcoFlow batteries are available in 2 kWh or 5 kWh sizes. These are long-life lithium iron phosphate (LiFePO4) batteries, which have an operating temperature from -4 F to 122 F because of their built-in auto heating. A 2 kWh EcoFlow Power Kit has one 2 kWh battery. Note that you can use either one to three 2 kWh or 5 kWh batteries in your power system, but you cannot mix and match the two sizes.
An EcoFlow Power Kit is also a plug-and-play off-grid power solution, it comes with all the cables you'll need to connect these components and your charging sources. Most of the cables are 15 feet long, solar and alternator charging cables are 20 feet long, and battery cables are typically 5 or 8 feet long.
POWER KIT ADVANTAGES
Many van builders design custom electrical systems with Victron Energy power components. Often these are reliable, excellent systems, but they are very complex and expensive, requiring many hours of research and design. After installation, problems with this kind of camper van electrical system can be difficult to troubleshoot, since every system is unique. In contrast, EcoFlow Power Kits offer:
Plug-and-Play - EcoFlow Power Kits offer a standardized, simplified power system that has a very simple installation process, comes with all the necessary cabling between the components and charging sources, and doesn't require extensive design experience or specialized tools. Most builders that we've talked to estimate that an EcoFlow Power Kit reduces their power system build times from 10-20 man-hours down to 2-3 man-hours. It's easy to plug in another battery for increased capacity, or plug in more solar panels for faster battery charging.
Four Charging Methods, Up to 6000W - An EcoFlow Power Kit enables you to use any combination of the charging methods most useful for an RV, including solar, alternators, shore power and generators.
Solar - Power kits allow as much solar power as you can fit on your roof! Three ports can allow for up to 1600W of solar charging on each port, up to 4800W total. EcoFlow offers and that can be mounted on the roof of your van, and you could even supplement these with portable panels.
Alternator - Three ports can also be used for alternator charging, 1600W each, up to 4800W total. Charge the system with single or dual alternators from 12-60V.
Generator - Connect an EcoFlow Dual-Fuel Smart Generator (or any other brand of generator) for up to 1800W of charging
Shore Power - Connect a 30A shore power source for charging from RV park/campground power.
KEY FEATURES: ECOFLOW POWER KIT
- Supports up to 6000W of charging from a combination of 4 charging methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
- Plug-and-play for simple assembly
- Compact, integrated design, all-in-one Power Hub incorporates 5 components

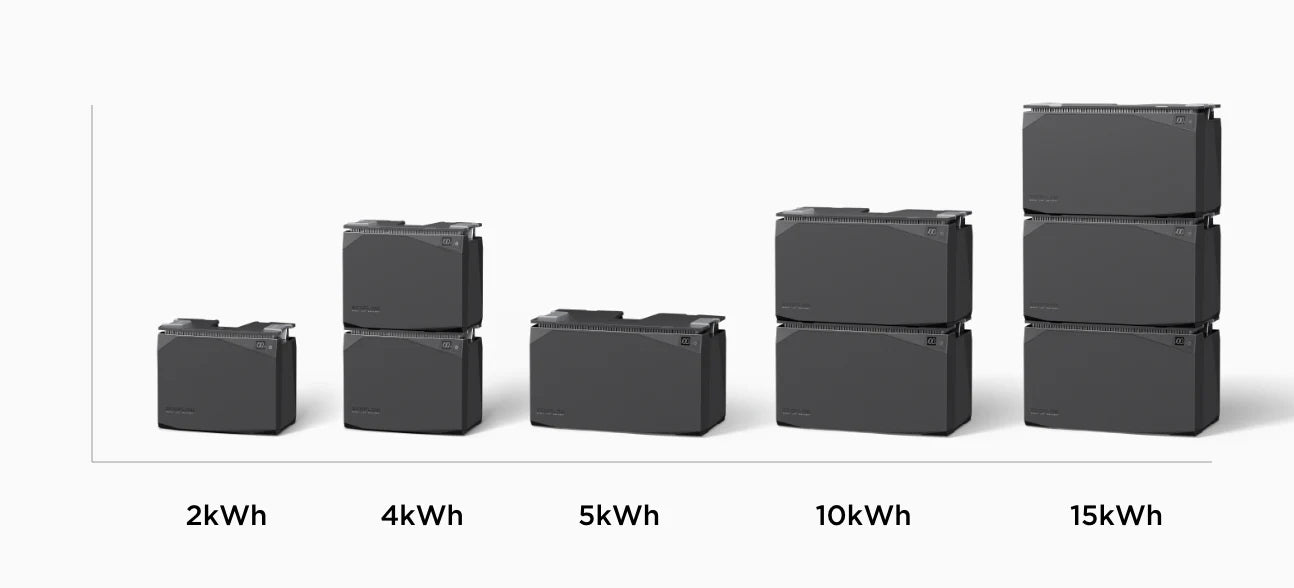

- Save space with stackable batteries
- 48V system, a safer, smaller power solution

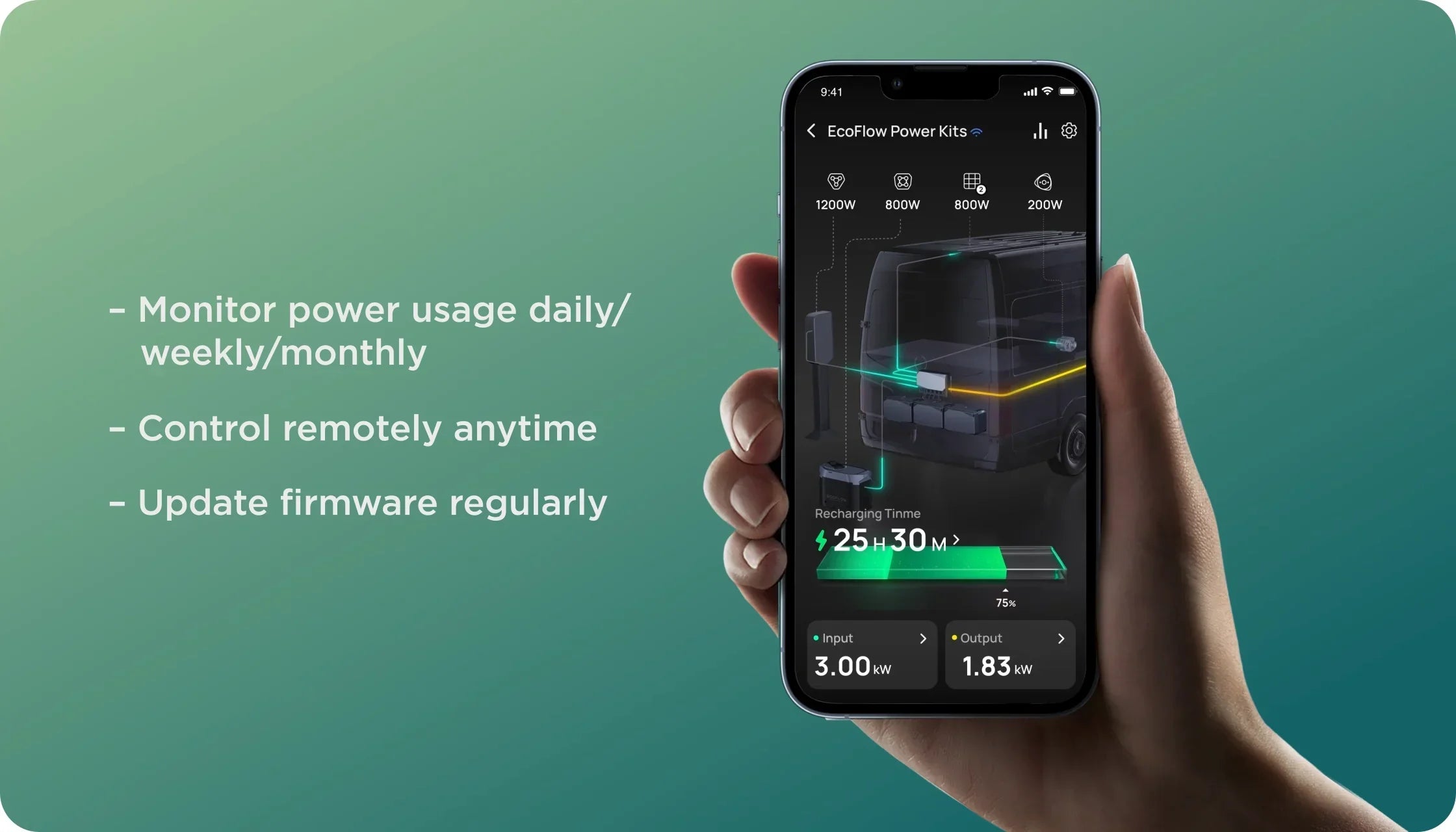

- Real-time and remote smart controls
- Made in China
