The JL Rubicon Fog Pocket replacement kit allows enthusiasts to retain factory fit and finish, while taking advantage of premium aftermarket LED output. This kit features a pair of Squadron Sports or Pros, which have a combined output of 6,300 lumens (9,800 lumens for Pros).
Installing the kit can't be any easier. Durable brackets have been designed to retain the stock mounting points. The provided wire adapters plug and play right into the OEM connectors, allowing the user to retain use of the factory fog switch, with no need for splicing or soldering.
Note: This kit is only compatible with the premium OEM metal modular Rubicon bumper. If you have a Rubicon with a plastic bumper, you must purchase the Sahara kit sku 447070 -
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color | Specifications (per light):
Sport Lumens: 3,150 Utilizing 4 LEDs
Sport Wattage/Amps: 26W / 2A
Pro Lumens: 4,900 Utilizing 4 LEDs
Pro Wattage/Amps: 40W / 2.9A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing) |

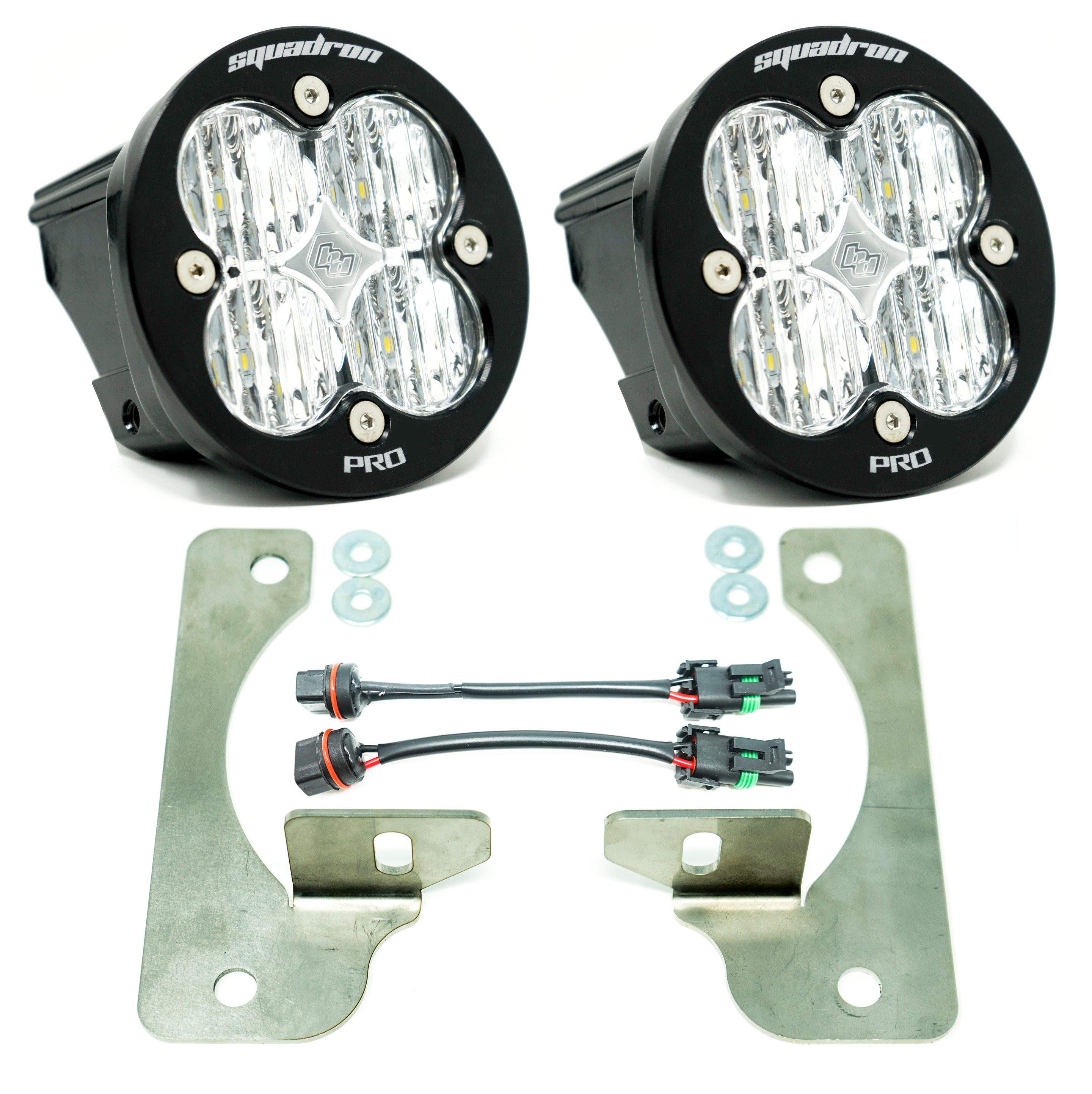

Includes:
· (2) Squadron-R Sport or Pro LED Lights
· (2) Sets of Jeep JL Mounting Brackets
· Plug and Play wiring connectors
· Hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
