Overview: Drastically improve the drivability of your Ford Transit with the newest generation of throttle mapping. Introducing the Pedal Control 2.0. Solve the dreaded hesitation, then wallop of power familiar to any van driver.
At first, the Pedal Box made the van more responsive but didn't solve the power delivery curve issue. With the introduction of the Pedal Control 2.0, we can drastically smooth the power curve and eliminate the hesitation and abrupt power delivery of a factory Transit.

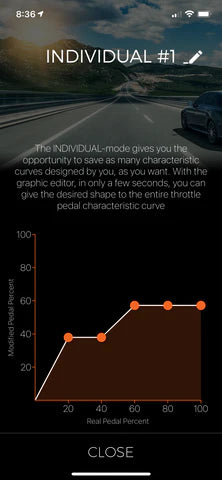

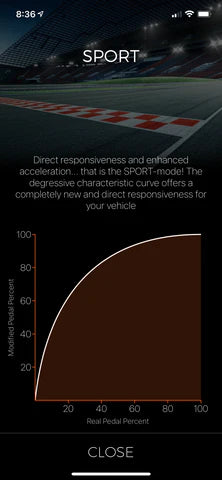

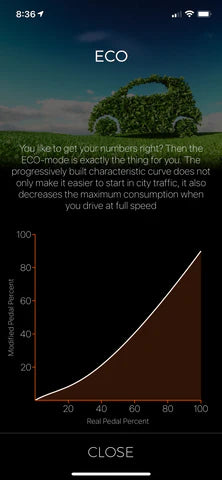

How does it work? The modern Transit has a drive-by-wire throttle system. The engine must have a certain RPM level to spool up the turbo to add power. This is why there is a significant hesitation off the line, followed by a big wallop of power. The Pedal Control 2.0 interrupts and re-broadcasts a new signal to the van's ECU. This allows you to adjust the throttle input electronically so that the Transit drives much more normally.

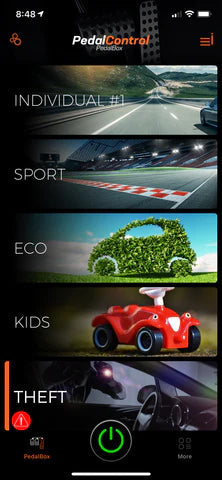

Theft Mode: A very useful new feature is Theft Mode. This allows the Pedal Control to interrupt the throttle signal to the vehicle. This means that the vehicle will turn on usually and run, but it cannot move. No matter how hard the throttle is pressed, the van's ECU will be sent a 0% throttle signal. Therefore, rendering the van un-driveable. Turn theft mode on or off via the app. It is great for people who like to leave their keys hidden near their vans while they hike or bike. Please remember that no theft deterrent can guarantee your van is not stolen.
Installation: PLEASE CAREFULLY READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE ATTEMPTING INSTALLATION. Simple installation with no permanent modifications to your van. Pedal Control 2.0 daisy chains easily just above the throttle. It installs in about a minute or two. Then you download the app, and you can select the program best for you.
! It does NOT affect the vehicle warranty and does not add any HP to the van. The product smooths the power delivery and makes the van more responsive to driver inputs.
The Pedal Control 2.0 has been carefully designed and rigorously tested. Please follow all installation instructions:
- Turn off the ignition and wait five minutes.
- Loosen the plug connection from the original plug adapter.
- Attach both OEM connectors to the accelerator pedal sensor.
- Lay the cables so that they are securely installed and do not interfere with anything else.
- Relocate the Pedal Control to a suitable location.
- Launch the app from your smartphone.
- Pair your smartphone to the Pedal Control with the default PIN “123456”
! NOTE: Never install or remove with the ignition system active. Always switch off the ignition and wait 5 minutes for all electrical systems to power down and fully discharge. Some vehicles may require additional time to power down.
On most vehicles, the connection for the Pedal Control 2.0 is close to the accelerator pedal or the steering column. You must ensure that the Pedal Control and the associated wiring loom do not interfere with the pedal or steering operation and are secured at all times.
